16.5mm super mini camera
Model Number:LHC165

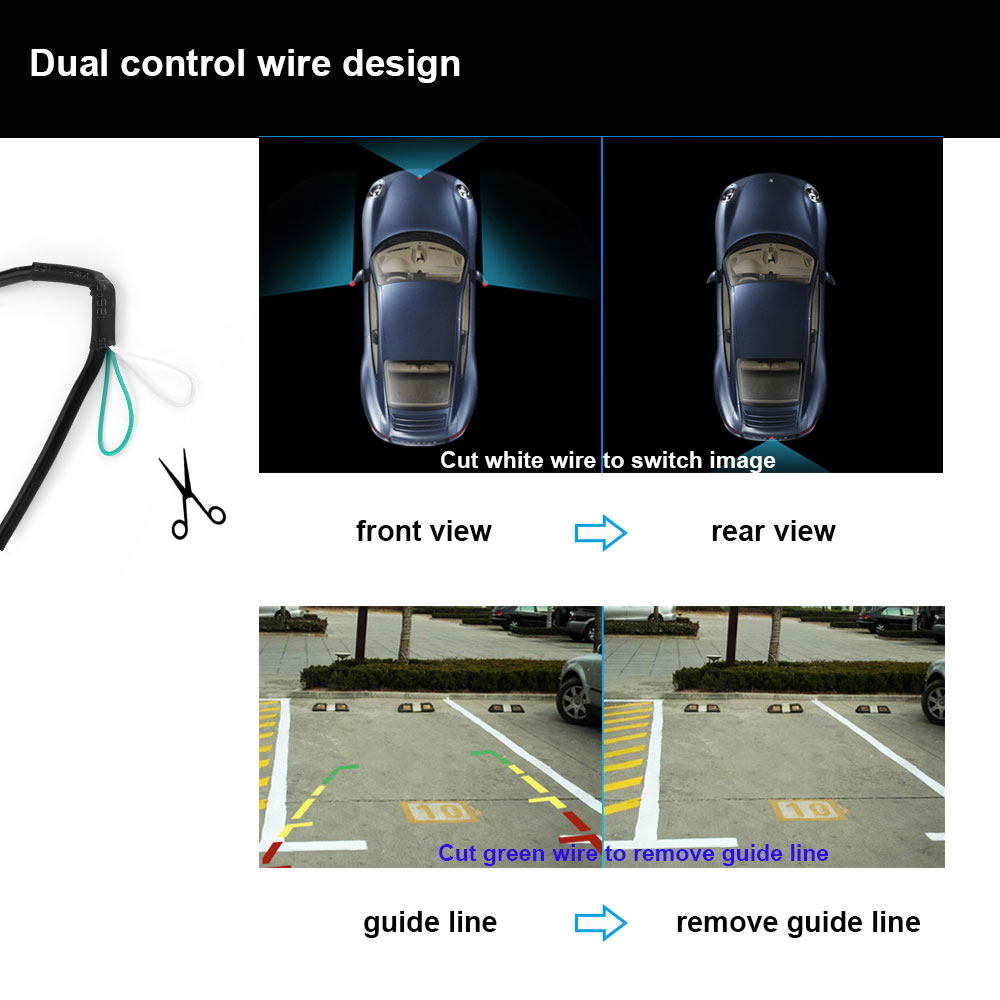

Mirrored image by defaut as a rear view camera, by cutting up the white switch wire you get non-mirrored image to use as a front or side camera.
Guideline is on by defaut as a rear view camera,by cutting up the green switch wire the guideline will be removed.

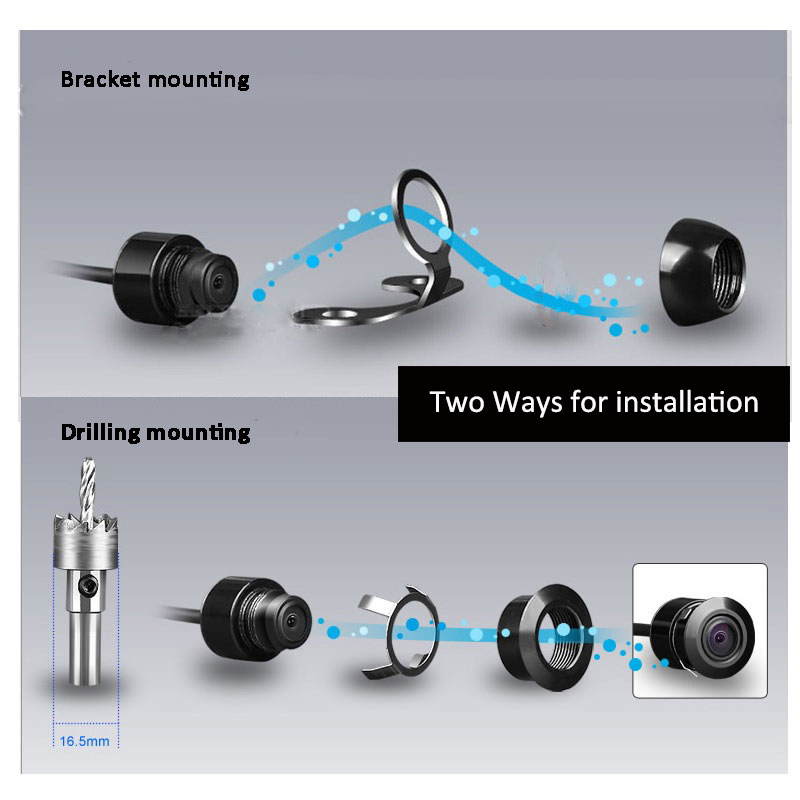

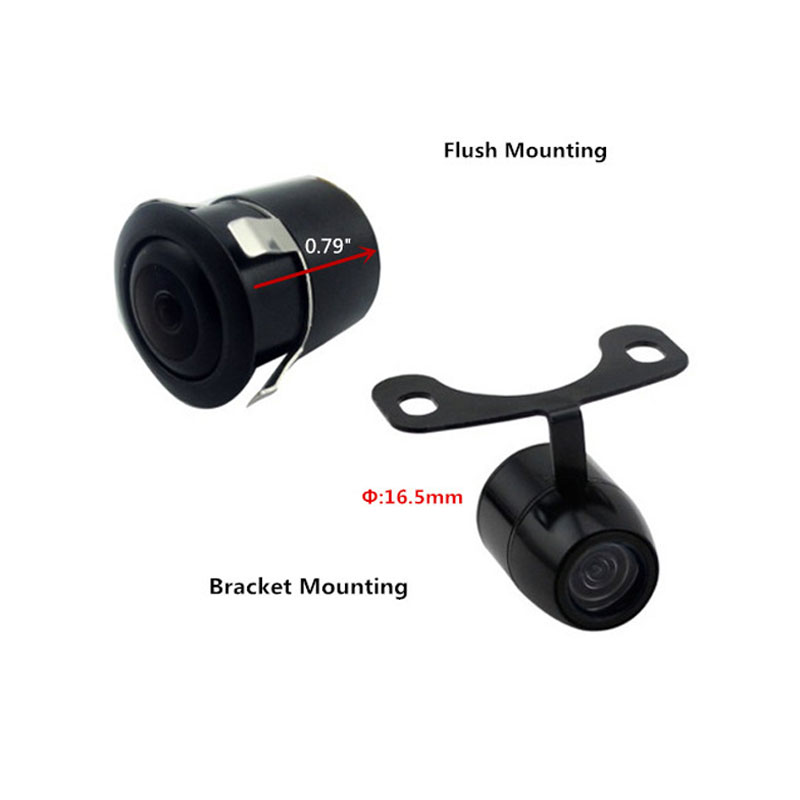

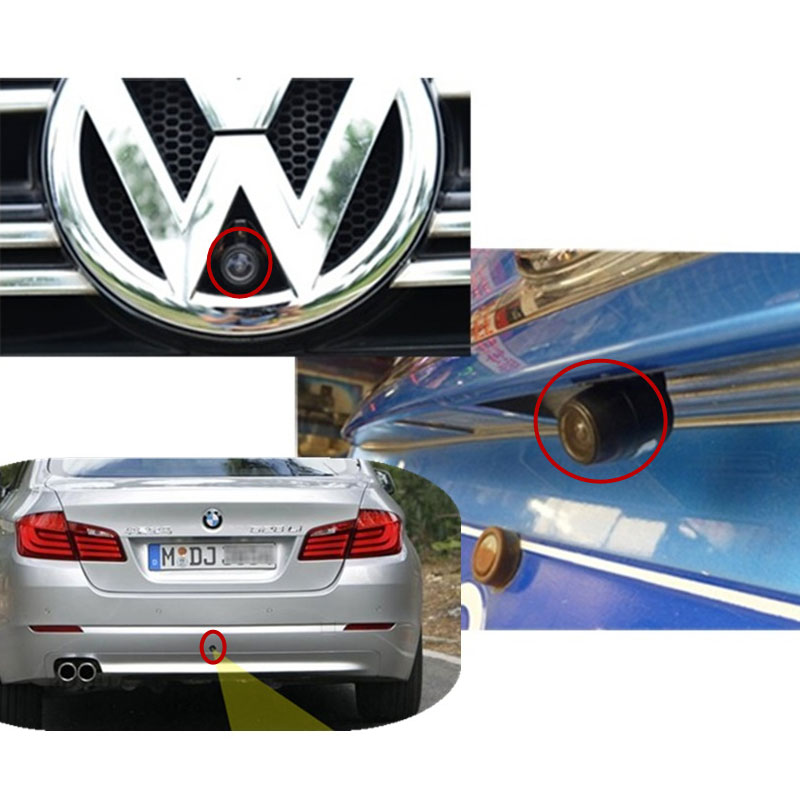

Super mini 16.5mm size,Support Drilling Mounting and Bracket Mounting both installations,universal for most of vehicles like Car,SUV,Truck or Van.
Can be connected with your existing OEM or aftermarket LCD/TFT displays that use a standard RCA input connection.We also add a 4pin connection design to help you pass though the narrow space while wiring.
Ultra low light performance,high image quality for day and night.
Waterproof,Shockproof,Shatterproof.
Specs:
-Optical Format:1/4 inch
-TV system: NTSC
-Lens Size: Φ16.5mm/0.65inch
-Lens Angel: Imaging angle 120°, horizontal angle 100°
-Pixel Size: 5.60um*5.60um
-Pixel Array:648(H)*488(H)
-Image Area: 3.63mm*2.73mm
-Temperature:-30 ~ 80 [°C] @ CT
Package Included:
-1 x Power cable(12V),1 x RCA 19.69ft cable
-1 x Car Rear View Camera
-1 x Hole Saw,1 x Bracket,2 x Screws,1 x 3M Tape
-1 x Manual
